Modular Jack Female 90 Degree SMT RJ45 Receptacle Connector W/Leds

Brand Name : Jinze

Model Number : RJ15A-LBA10-TRA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Tray Packaging

Material : LCP UL94V-0 Black

Gender : Receptacle

Application : Automotive Industry/Computor

Number of Ports : 1x1 Port

Part Status : Active

Current Rating : 1.5AMP

Mounting Angle : 180 Degree Angle (Right)

Mounting Style : PCB Mount

LED Option : Green/Yellow

Bst Circuit : YES

AutomDX : YES

Packaging : Tray & Carton

Contact Now

Speciafications

Current Rating 1.5AMP
Contact Resistance 20mΩ Max
Voltage Rating 125V
Insulation Resistance 1000mΩ Min. AT500V DC.
Operation Temperature -40℃ to +85℃
Contact Material Phosphor Bronze T=0.30mm
Contact Plating Gold+Tin+Nickel
Insulator Material LCP

Drawings

Modular Jack Female 90 Degree SMT RJ45 Receptacle Connector W/Leds

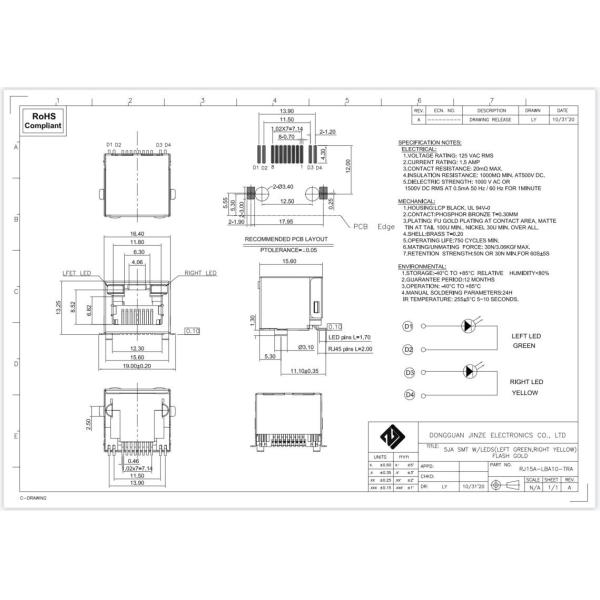

2D Drawings:

RJ15A-LBA10-TRA.pdf, if you need the Drawing, pls download it

What's RJ45?

RJ45, or Registered Jack 45, is a standardized physical connector used primarily for Ethernet networking. It's an 8-position, 8-contact (8P8C) modular plug and socket commonly used for connecting computers, routers, switches, and other networking devices. The RJ45 connector is designed to work with twisted pair cables, such as Category 5 (Cat5), Category 5e (Cat5e), Category 6 (Cat6), and Category 6A (Cat6A) cables.


The connector is often referred to as an "Ethernet jack" or "Ethernet plug" because of its widespread use in Ethernet networks. The RJ45 connector is used to transmit data at speeds ranging from 10 Mbps (10BASE-T) up to 10 Gbps (10GBASE-T), depending on the type and quality of the twisted pair cable being used.
